The Lenzing Group, a leading supplier of regenerated cellulosic fibers for the textile and nonwovens industries, together with KARL MAYER, the global market leader in warp knitting machines and warp preparation systems, debut a joint innovation project during Premiere Vision, Paris.
The collaboration focusing on identifying new, efficient ways to process Lenzing’s TENCEL™ Lyocell and Modal fibers with Micro Technology, made from the natural material wood, sourced from certified or controlled sources and manufactured using a responsible production process with a low environmental impact, on warp knitting machines, whilst demonstrating their suitability for high-quality textile applications.
TENCEL™Lyocell and Modal fibers produced with Micro Technology are characterized by their fine titers which enable the production of finer yarns, resulting in smooth and consistent fabrics that deliver softness and lightness for enhanced comfort, whilst yielding superior drape and movement.
Cellulose fibers offer consistent fiber length uniformity, forming the basis for high mechanical performance. Despite this advantage, the production of warp-knitted fabrics from cellulose fibers presents significant technical challenges. To address this complexity, the two partners joined forces to develop a new innovation project; Lenzing contributing extensive expertise in fiber production and yarn development, including the downstream spinning process, whilst KARL MAYER complemented with many years of experience in warp beam production from staple fibers and their processing on high-performance warp knitting machines. The manufacturer’s machines are renowned on the market for their maximum efficiency, reliability and quality.
Yarn Properties: Minimal Hairiness, Homogeneous Cross-Section
The first step within the project development was to select fibers and spinning technologies that would result in yarns with reduced hairiness. Low hairiness prevents contamination by lint or flying fibers during the beaming and warp knitting process.
In addition, a uniform yarn cross-section is important. A high level of homogeneity of the yarns ensures the tensile strength required to process several thousand threads at maximum speed on KARL MAYER warp knitting machines. Four different yarns were used, each made from two fiber raw materials and two spinning processes.
Specifically, the choice fell on:
1. TENCEL™ Modal with Micro technology, Ne 60/1 ( Nm 100/1) Ring Compact – from Gebr. Otto GmbH + Co. KG, 89165 Dietenheim (Germany)
2. TENCEL™ Lyocell with Micro technology, Ne 60/1 ( Nm 100/1) Ring Compact – from Gebr. Otto GmbH + Co. KG, 89165 Dietenheim (Germany)
3. TENCEL™ Modal with Micro technology, Ne 60/1 ( Nm 100/1) SIRO Compact – from Inovafil – Fiação, S.A., 4770-583 Vila Nova de Famalicão (Portugal)
4. TENCEL™ Lyocell with Micro Technology, Ne 60/1 ( Nm 100/1) SIRO Compact – from Inovafil – Fiação, S.A., 4770-583 Vila Nova de Famalicão (Portugal)
Processing: High Efficiency, Good Quality

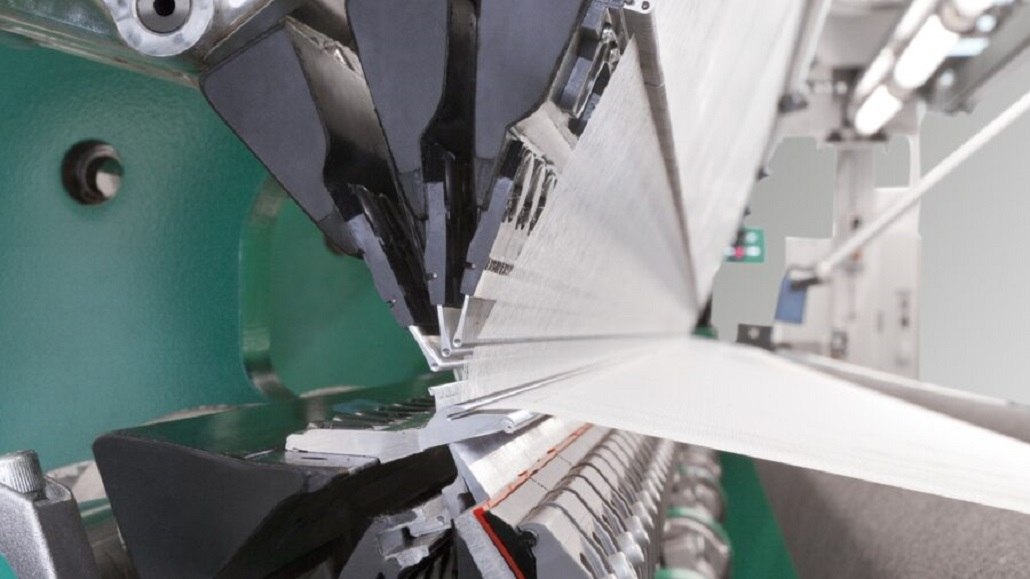

The yarn material was warped to a high standard, particularly in terms of lint and used on a high-performance warp knitting machine in a gauge of E 28 with two guide bars. This resulted in three different articles for the clothing sector from each yarn: an open worked three-stitch tulle net, a close-knit fabric made counter-lapped open tricot lap and a fabric made from a counter-lapped atlas lap, also with a dense surface.
The processing tests revealed a clear winner: SIRO Compact impressed with significantly reduced hairiness, resulting in less fiber abrasion and less contamination of the machine.
Debut Showcase: Market Ready Solutions
The results of the innovation project will be presented to the textile world during Premiere Vision, Paris, 3rd-5th February, introducing a capsule collection as a mix of applications across lingerie, innerwear and lifestyle pieces for everyday wear.
The Lenzing team will be at the Lenzing stand 6P30 to welcome guests, engage in discussions on all the latest innovations across the Lenzing portfolio, whilst exploring the new applications across the capsule.
